Eos family of Power Supplies

Power Supplies for Mnemosyne and Atropos

Power Supplies of the Eos family support both Mnemosyne and Atropos drive units.

Notos multi-channel Power Supply (packed in Hephaestus cabinet U1) features:

  • 24 VDC - 225 Watt high quality switch-mode PS with 200.000 hour MTBF
  • IEC inlet module for 85 – 265 VAC, 50-60 Hz
  • 6 x 24 VDC outlet Buccaneer sockets, max 9.5 amp in total
  • Mini display show total amp load
  • Build-in fan
  • Noise damped electrical outlet
  • IP31 design
  • CE certified and EMC compliant when grounded correctly

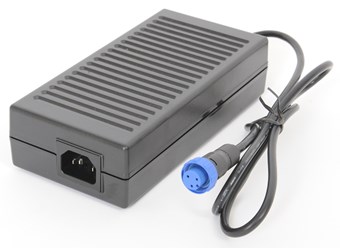

Zephyros single-channel fully sealed desktop Power Supply features:

  • 24 VDC - 150 Watt high quality switch-mode PS with 200.000 hour MTBF
  • IEC inlet module for 85 – 265 VAC, 50-60 Hz
  • 1 x 24 VDC outlet Buccaneer plug
  • Noise damped electrical outlet
  • IP64 design
  • CE certified and EMC compliant when grounded correctly



All Eos family products require sufficient supply ground connection.
