Unique diaphragm Single-Use-Pump's

Euterpe stand-alone pump cell's

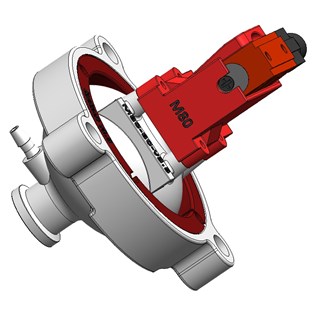

Super compact Air-Operated-Diaphragm-Positive-Displacement (AODPD) Single-Use-Pump (SUP) offer a range of unique features unheard of in the industry. For even more compact installation the stand-alone pump cell and the Atropos Drive Unit are separated. Off course the pump cell's are all single-use, durable and of low cost.

Stand-alone product, model

Euterpe-30

Euterpe-100

Euterpe-300

Euterpe-500

Euterpe-1000

Layout, number of diaphragms

single

single

single

single

single

Cardiac Output, CO range, mL / min

0 - 750

0 - 2.000

0 - 3.500

0 - 6.000

0-10.000

SUP cell weight, grams 100 200 300 400 800

General features

  • Euterpe (AODPD) SUP show on the Atropos Drive Unit display the conveyed mass-flow in real-time with 1% accuracy
  • No extra mass-flow sensor is needed
  • One or more fully programable individual operating Single-Use-Pump cell’s
  • Euterpe is self-priming and pump any mix of gas and liquid
  • No tools required for exchange of pump cell
  • Euterpe SUP do NOT require calibration
  • Lifetime exceeds 1 million cycles at 75% CO
  • Communication via Atropos equipped with both Wi-Fi and LAN

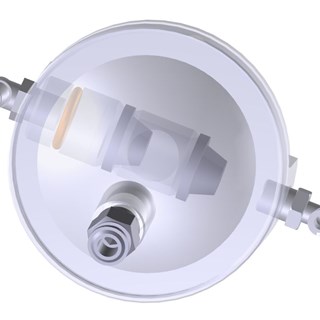

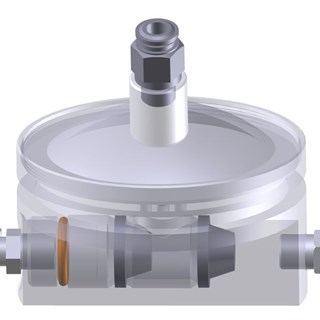

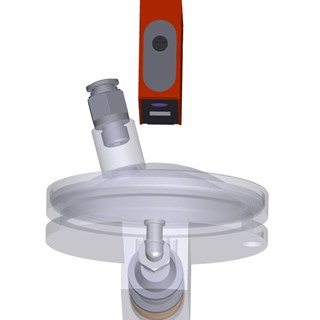

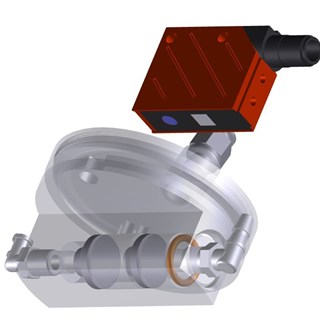

clio a.JPGclio f.JPGclio b.JPGclio c.JPGclio d.JPG



Euterpe require connection to Atropos Drive Unit

Communication

Euterpe pump cells are designed for stand-alone operation connected via one electrical wire (Laser) and one drive gas hose to the Atropos family of Drive Unit's.
