Small Clio SUP
Clio CM80 stand-alone Positive Displacement (PD) Single-Use-Pump cell convey max 450 mL/min. No need for calibration. No need for externally mounted mass-flow sensor. Impressive 1:5,000 mass-flow ratio.

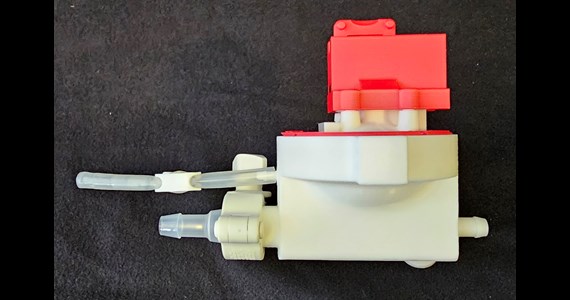

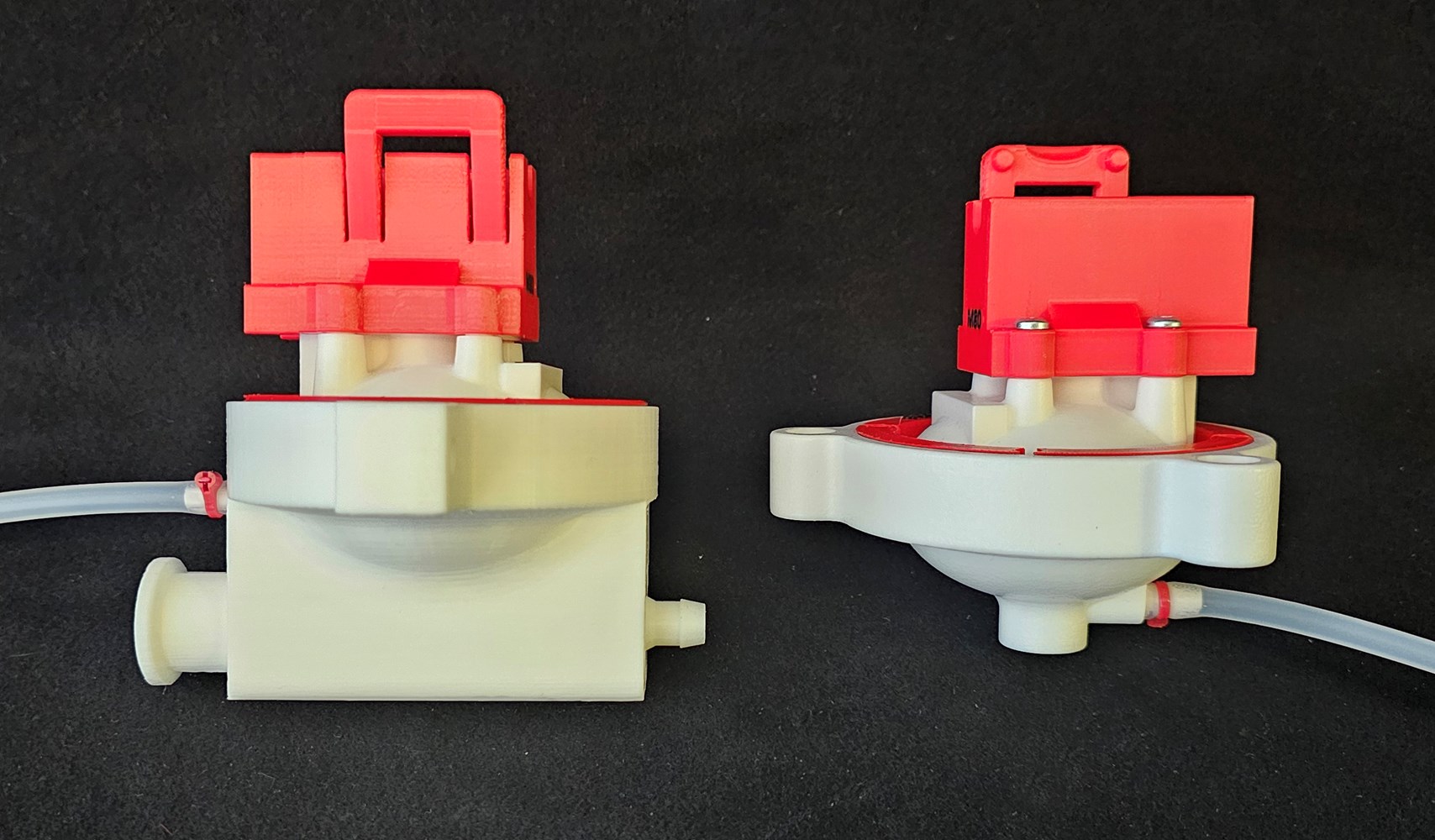

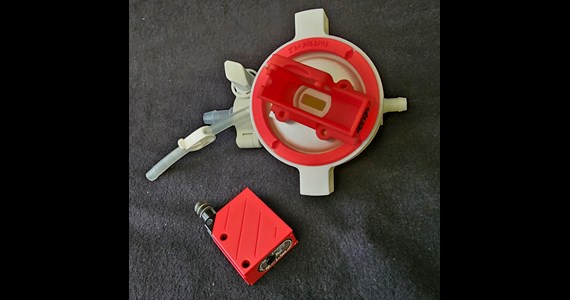

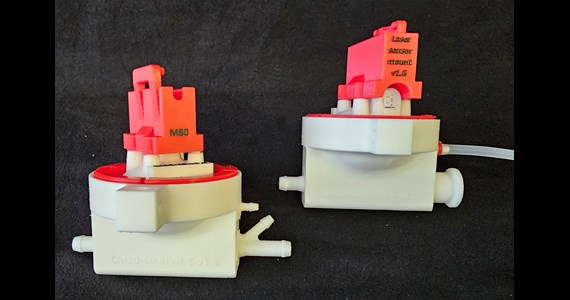

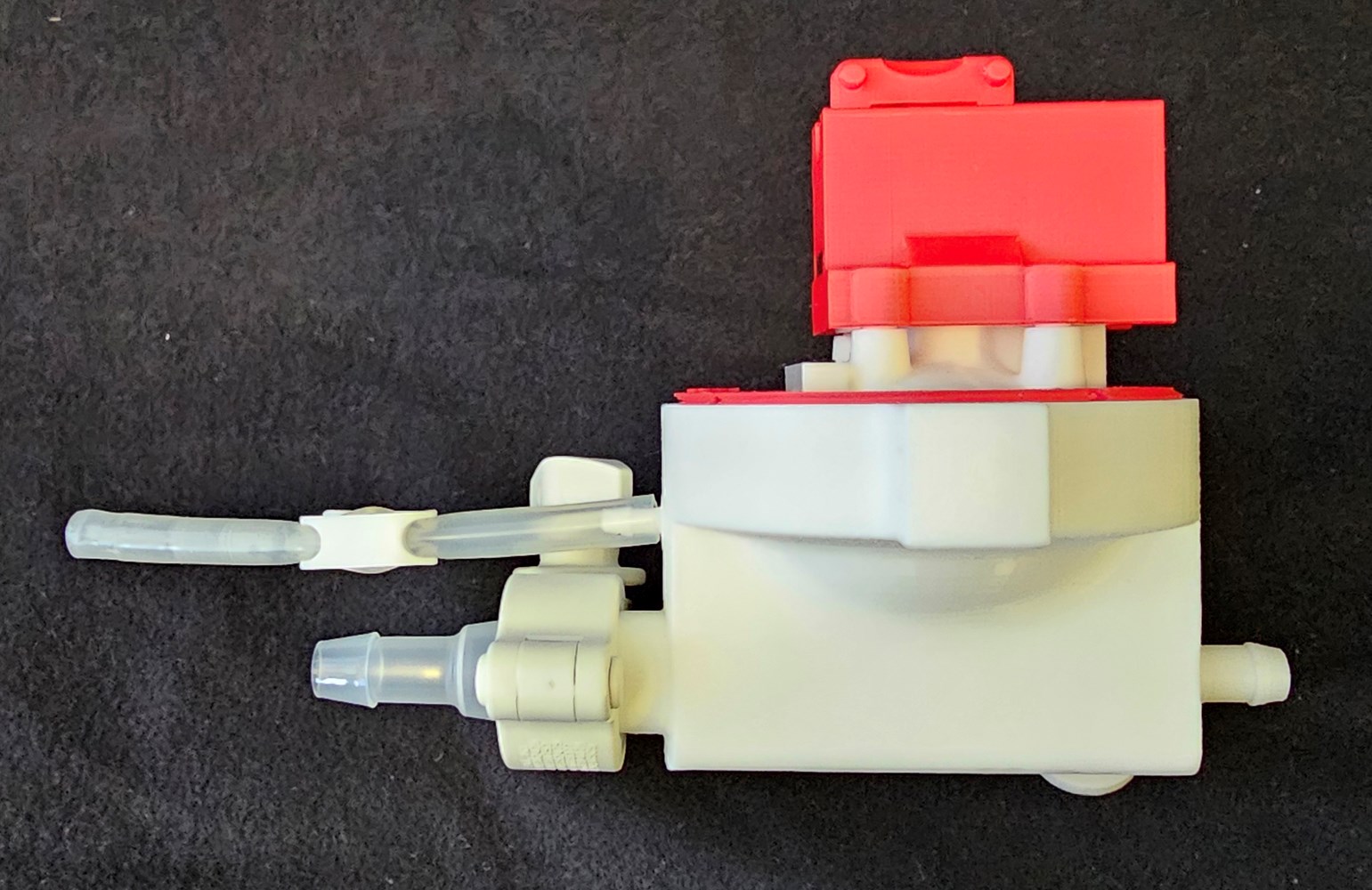

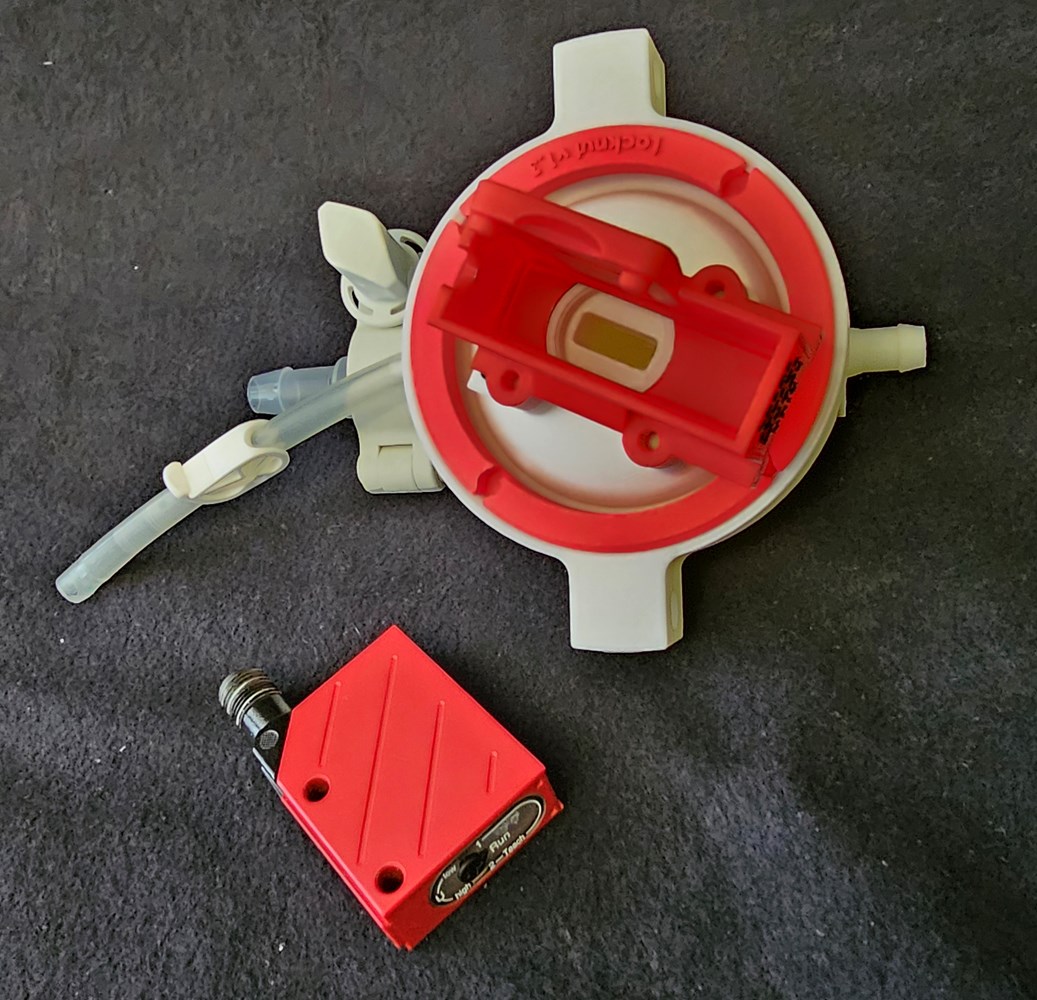

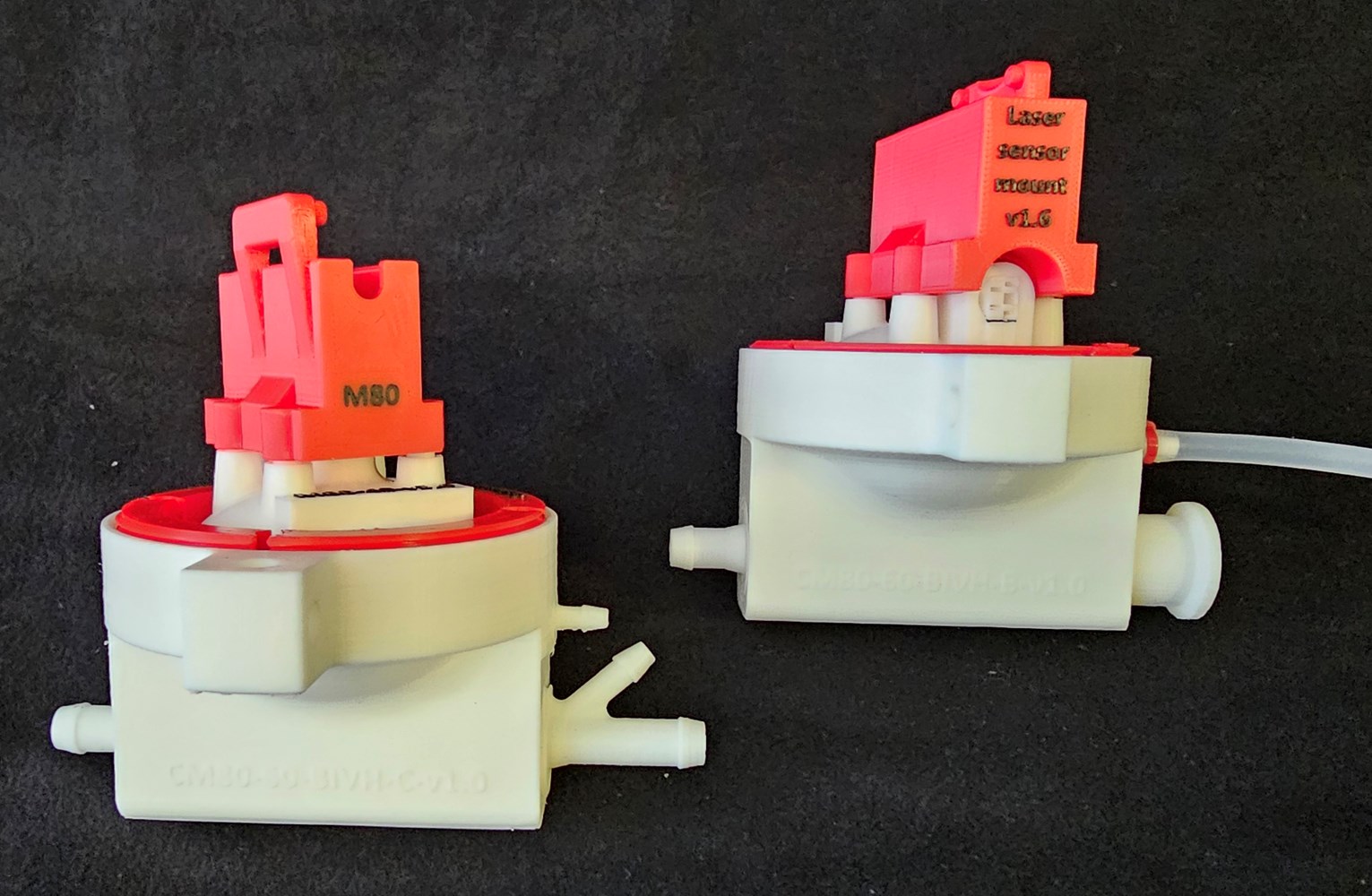

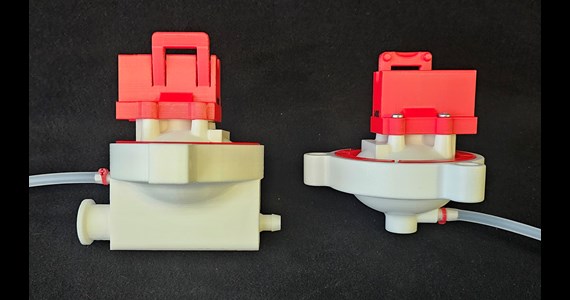

CM80 from different angles and with different fluid connections. Centre photo show the window in the LASER foot allowing the LASER to read the diaphragm position at any time.
Single-Use-Pump's reduce downtime between batches and Clio family of SUPs are in particular easy to work with. The Single-Use-Pump can be replaced in seconds without any tools. In the biotech and pharmaceutical development process the Clio pumps is the fastest and cheapest Positive Displacement (PD) SUP. Because Clio is a true PD pump no extra mass-flow sensor is required.

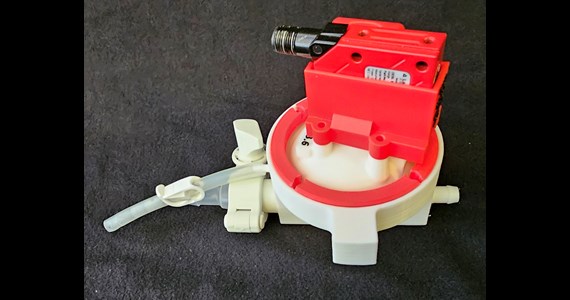

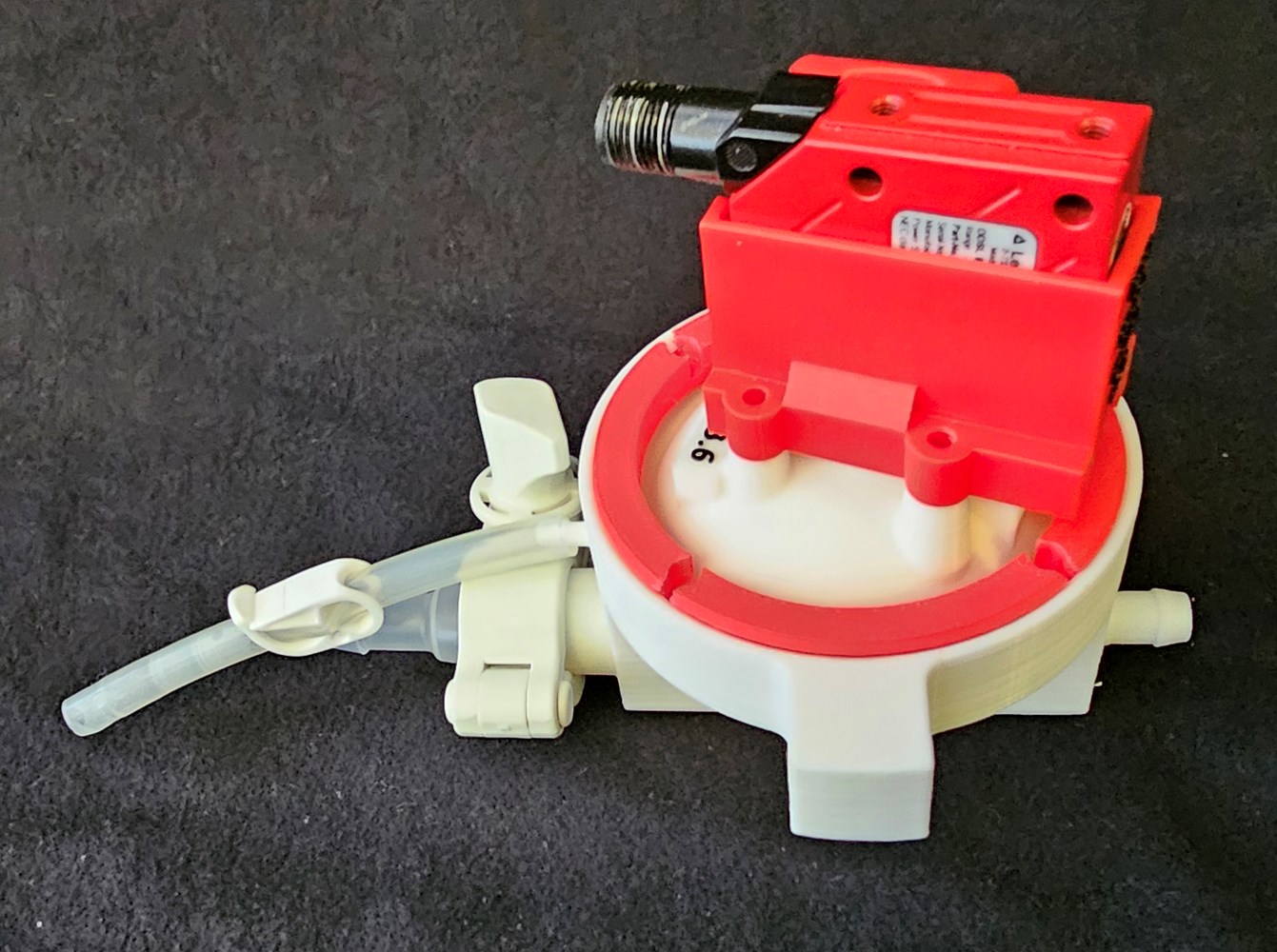

The red LASER sensor (part of Clotho) is connected via a 1.5 meter cable to the Clotho Drive Unit. The Clio SUP need only one hose for drive gas also connected to the Clotho Drive Unit. No electrical motor or servo motor drive for Clio is required.
Clio Single-Use-Pump chamber are manufactured from medical grade Nylon. The diaphragm is manufactured from medical grade silicone. The two valves are manufactured from medical grade silicone. Platinum cured silicone or C-Flex in the dimension and length you may desire. Hose connectors of the design and supplier you require. Delivered dual bag packed and E-beam irradiated.
