Drive Unit’s for SUP’s

The portfolio of Clio O-SUP's are driven by the Apollon PLC and OPC-UA software. All housed inside the very compact Clotho or the larger Lachesis Drive Unit (Atropos is the largest Drive Unit). Both able to drive remotely one or two stand-alone SUPs over distances up to 2 meter.

Product, model name	Clotho-1 (mono)	Clotho-2 (stereo)	Lachesis (mono)
Method of control	LASER, pressure sensor, PID & proportional valves	LASER, pressure sensor, PID & proportional valves	LASER, pressure sensor, PID & proportional valves
Purpose of control	1 x Single-Use-Pump cell	2 x Single-Use-Pump cell's	1 x Single-Use-Pump cell's
Cabinet size	U2	U2	U3

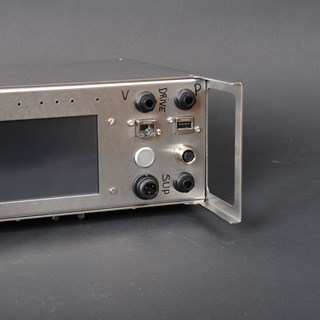

Clotho-1

Single channel (mono) control station, Drive Unit for one Clio stand-alone Air-Operated-Diaphragm-Positive-Displacement (AODPD) Single-Use-Pump (SUP) cell.

Clotho-2

Dual channel (stereo) control station, Drive Unit for two Clio stand-alone Air-Operated-Diaphragm-Positive-Displacement (AODPD) Single-Use-Pump (SUP) cell's.

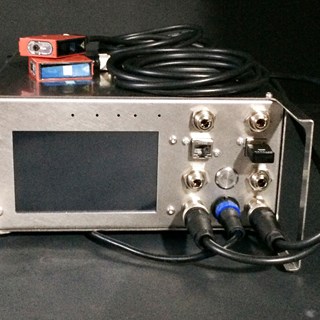

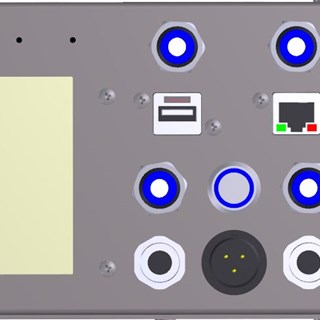

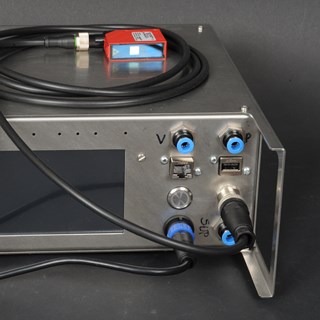

Lachesis

Single channel (mono) control station, Drive Unit for one large Clio stand-alone Air-Operated-Diaphragm-Positive-Displacement (AODPD) Single-Use-Pump (SUP) cell's. Requires supply of sufficient drive pressure and vacuum volume equivalent to the pumped liquid volume.

Drive Units require air/vacuum supply for drive of the Clio pump cell's. You may have pressurized air and vacuum in your lab. If not available, then the unit's below may be of help for the small Clotho Drive Units.

General features

Product, model name	Alagonia-8	Alagonia-50	Sarpedon
Purpose	Pressurized air or vacuum pump	Vacuum pump	Storage for pressurized air and / or vacuum

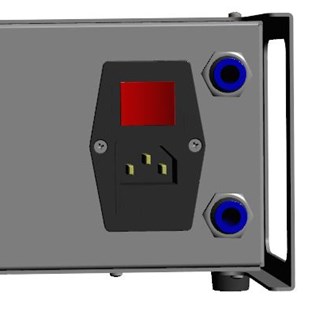

Alagonia-8 combined with 1-2 Clotho

Hephaestus U2 cabinet integrating one dual diaphragm pump supplying either pressurized air or vacuum supplying Clotho Drive Units from PerfuseCell. One Alagonia to supply 2 x Clio CM80 SUPs or one Clio CM100 SUP with pressure or vacuum. Two Alagonia operating in parallel will supply 2 x CM100 SUPs with either pressure or vacuum. Fully stand-alone unit also suitable for other applications.

Alagonia-50 combined with 2-4 Clotho or one Lachesis

Hephaestus U3 cabinet integrating one high tech scroll pump driven by 24 VDC BLDC motor. By far the coolest vacuum pump unit available. Pressures down to 0.05 mBar absolute and up to 50 liter/min. Runs completely dry with low noise level and fully CE certified. Fully stand-alone unit also suitable for other applications.

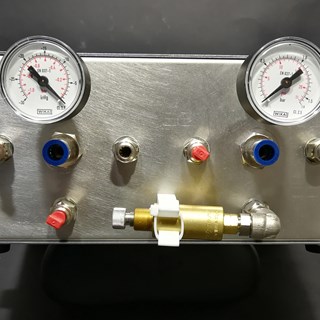

Sarpedon combined with Alagonia-8

Hephaestus U2 cabinet integrating two separate 1 litre metal storage chambers. Connects to Alagonia for pressure / vacuum wave, pulse absorption and acting as a manifold.

We urge you to ensure sufficient capacity and pressure from both below and above atmospheric pressure at any time.

Hardware manufactured by www.cronus-pcs.com
