Specification to Urania diaphragm pump
Urania – future development
Dual OD 150 mm membrane, 200 mL full stroke, controlled pulse width, possible individual diaphragm operation, o-3 bar operating pressure, fully controlled inlet / outlet valves, variety of pump cell design shared with Polyhymnia. IP64 protection designed.
|
Product, model name |
Urania |
|
Layout, number of diaphragms |
dual |
|
Pump capacity, mL/pulse |
2 x 0-200 |
|
Pump capacity, max mL/min |
8,000 |
|
Max puls-per-minute rate |
20 |
|
Hose connection, mm: |
8/12/18 |
|
Air usage at max pulse rate, L/m |
10 |
|
Air pressure required, Bar |
6 |

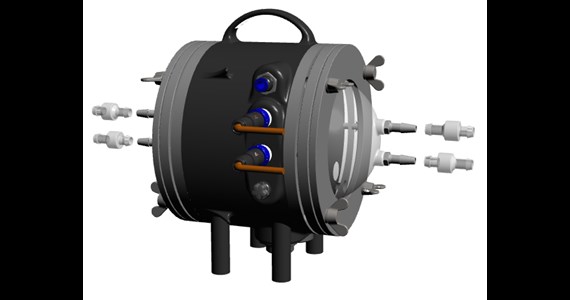

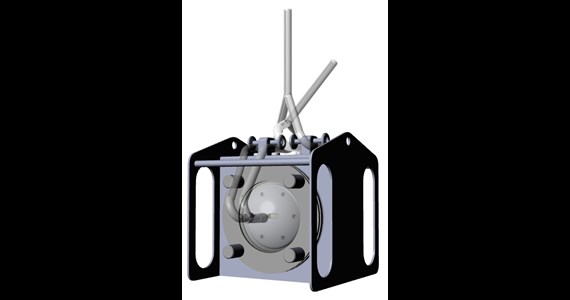

Rendered illustrations from SolidWorks
